How to run the model on AnyLogic Cloud
AnyLogic
is integrated with AnyLogic Cloud - a web portal that
hosts simulation models and allows you to run your models online and
share them with other users.
AnyLogic
models hosted at AnyLogic Cloud run on a server and do not require AnyLogic to
be installed on the end user's computer. The execution process is visualized in
a web browser.
To get a
full experience with AnyLogic Cloud, you need to create an account.
1. Open the Anylogic cloud sign up page by doing either of the following:
o Navigate to
Anylogic Cloud website https://cloud.anylogic.com/.
o Click
the
button in the toolbar to open the Log in to AnyLogic Cloud dialog
box. Click the Sign Up... link.
o If you have
the Export
Model To AnyLogic Cloud wizard open, you can click the register new account link in the
wizard window.
2. Provide your e-mail address. Note that a valid e-mail
address is required.
3. Type and confirm your password in the Password and Confirm
password fields respectively.
4. Click the Sign up button.
5. AnyLogic will send a confirmation e-mail to the
address that you provided. Click the link contained in the e-mail to verify
your account and finalize the sign up process.

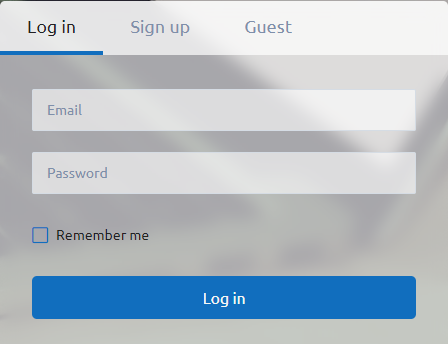

Once this process is complete, open the log in page in
your browser. After providing your account credentials, click the Log In button.
Once you are logged in, click on the url shown below
and you will then be transferred to the experiment screen, where you can run
the model.:

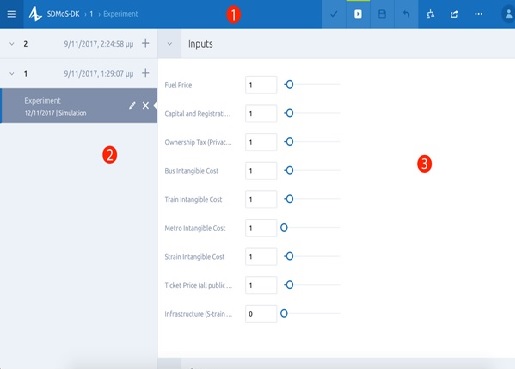

In the experiment screen, you can run experiments in
AnyLogic Cloud and view the results
1. The experiment toolbar provides a set of buttons
through which the basic tasks can be performed.
2. In the sidebar,
the existing model versions and experiments for each model version are created
and listed. Selecting an experiment in the sidebar, opens the experiment
screen.
3. The experiment
dashboard displays the parameters and the results of the experiment.
Inputs: Lists the model parameters and allows editing their
values.
Outputs: Presents the model version’s results, after an experiment has been run. If
the experiment has not been run yet, the section appears blurry.
Sidebar: It is displayed on the left hand side of the screen. On the upper level,
the model version is listed. On the lower level, the additional experiments created
for the each version are listed.
To show/hide the
sidebar: Click the
button in the top-left
corner of the experiment screen.
To expand or
collapse the list of experiments for the model version: Click the model version node in the sidebar.
Running the Experiment
To run the
experiment
Click the
Run button
in the experiment toolbar or the run link in the Outputs section
of the experiment dashboard.
Note: Since experiments are executed on a remote server,
you do not need to stay on the experiment page until the experiment is
finished. You can freely leave the experiment page (for example, to run another
experiment) and return to it at a later point.
The experiment execution progress is visualized via the progress bar in
the Outputs section and via the circular indicator next to the
experiment's name in the sidebar.
To modify the experiment's default input values
In the Inputs section of the
experiment, provide the input values. The
Save inputs button
on the experiment toolbar will become active.
Click the Save inputs button.
The input values will be saved and used as the new default values for the
experiment.
If the input values that you have provided differ from the experiment's default
values, you can discard the changes thus reverting the input values to their
default state.
To discard changes in the
experiment's input values
Click the
Discard changes button.
The input values will be reverted to their default state.

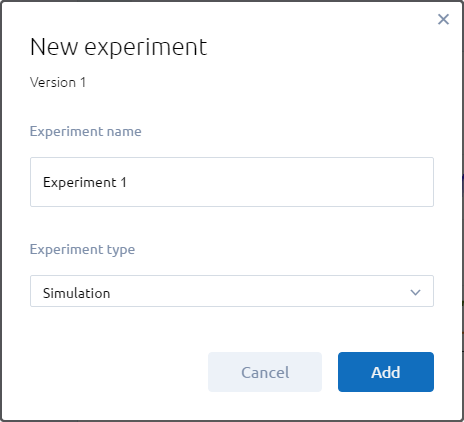

To create a new experiment
Click the
button in the model version node. The New
experiment dialog box opens:
Type the name of the experiment in the Experiment Name entry and select the simulation Experiment Type. Then click
the Add button.
Experiment Toolbar
|
|
Run
the experiment (without animation). If the experiment
has already been run, the button is inactive and is displayed as
|
|
|
Play vector animation
|
|
|
Save
inputs for the current experiment
|
|
|
Discard
changes in inputs (restore
the inputs to the previously saved values)
|
|
|
Compare experiment runs
|
|
|
Export to Excel
|
Additional Control Elements:
The
button opens the
additional commands menu:
|
|
Create a copy of the
experiment
|
|
|
Export inputs
|
|
|
(the command is available
for public models only)
Add a copy of the model to
the My models section
|
|
|
Share the model
|
|
|
Model info (Navigate to
the model
screen)
|
Model Animation
Select the experiment in the sidebar and then provide
the input values that you wish to run in the model. Then click the “Play vector
animation” button found in the experiment toolbar. A pop-up window showing
animation will open.
On the bottom part of the animation screen, you will
find the available playback controls:
|
|
Pause animation.
|
|
|
Resume animation.
|
|
|
Stop animation and close the
animation window.
|
|
|
Stop animation and close the
animation window.
|
|
|
Set the real time mode to
the default scale.
|
|
|
Slow down animation by
decreasing the scale of model time to real time.
|
|
|
Displays the
current scale ratio of model time and real time. You can change the
current value using the and  buttons.
Displays  if animation
is running in virtual time model.
|
|
|
Speed up animation by
increasing the scale of model time to real time.
|
|
|
Switches animation to the
virtual or real-time time mode. If virtual time mode is set, the
current scale ratio of model time and real time is
displayed as . To
turn the virtual time mode off, click again
or slow the animation down by clicking .
|
|
|
(displayed in the windowed
playback mode)
Switch the playback window
to fullscreen mode.
|
|
|
(displayed in
the fullscreen playback mode)
Switch the playback window
to windowed mode.
|
Model Comparison
Click the
Compare button
in the experiment toolbar. The Comparison screen will open and
the selected experiment will appear in the Compare experiments section
of the sidebar:
To include another experiment to comparison, select the check box
next to the experiment's name. The experiment will be added to the Compare
experiments section (to exclude an experiment from comparison, clear
the check box next to the experiment's name).
Сlick the Exit Comparison button in
the experiment toolbar.
Note: Should you need additional
help on this tutorial, please visit the AnyLogic tutorial website:
